Loveshaw - Carton Sealer - Model - Legend - Random

Loveshaw - Legend - Random - Top and Bottom Belt - Carton Sealing Machine

Case Sealing for the Real World

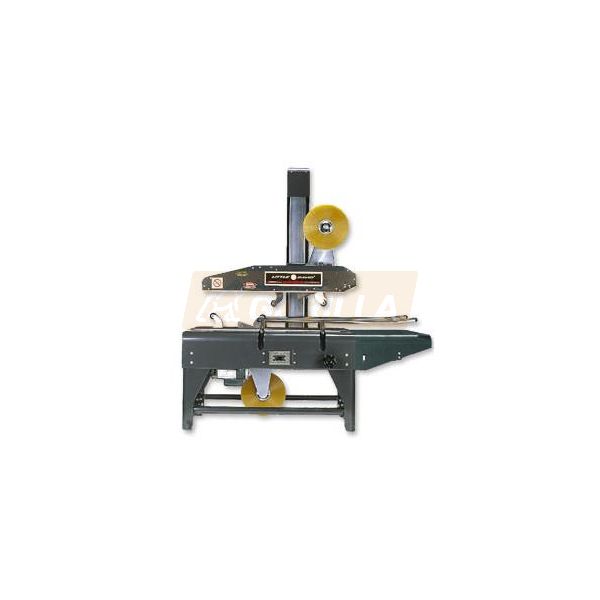

The Legend Case Sealer is a solution for businesses requiring a state of the art top and bottom case taper.  This system is built to handle large runs of random cases or those applications that require frequent case size changes.  This sealer effortlessly seals cases from 4.25" to 24" in height.

No adjusting needed for sealing random box sizes at speeds of 80 ft. per minute.  The Random Legend has a single mast, enclosed head lifting cylinder, head raising air switch and comes standard with extended side rails, and a roller in-feed table with integrated roller switch to operate rails

This unit incorporates a sealed drive, an internally mounted electrical system and includes 1 infeed pack table.

Ideal for those seeking an alternative to expensive competitor models and labor costs. The Legend also replaces the tedious task of hand taping cases and the use of unsafe machinery.  This model requires very low maintenance and operates with simple adjustments.

This versatile machine has options available to allow for customization. These options include some of the following: casters, leg adjustments, top squeezers and more. - Configure your machine in options section above.

All PARTS are stocked and available for immediate shipment.  All technical support, service, and machine parts are fully supported by our dedicated technical parts division Machine Parts Toolbox.

Standard Features of the Legend - Random:

Include:

• 1 Year all components

• 2 Years Gear Reducer

• 3 Years Cartridge

• Tapes cartons from 4-1/2″ (114mm) to 24″ (610mm)

• Converts for 2" or 3" wide sealing tape

• Plug in operation

• Minimal operator training required

• Sealed drive system

• CaseLocker ST® tape cartridge requires no lubrication

• Single mast design allows clear access and safety

• Knife guard system of the CaseLocker ST® tape cartridge allows the blade to be exposed only when the rollers are depressed

Power Requirements:

• 115 – 220 Volts, 60 cycle, single phase

•  Note: Other voltages available. Special request on quote for details.

Operating Speed:

• Continuous belt drive; 80′ per minute (24.4 m/min.)

• (production rate depends on box size and operator dexterity)

Weight:

• 275.0 lbs (125 kg) uncrated

Machine Dimensions:

• Height: 57-3/16″ (1453 mm)

• Width: 31-15/16″ (812 mm)

• Length: 56-3/4″ (1442 mm)

Closure Material:

• Pressure sensitive sealing tape

• Width: 1-1/2" (38mm) to 2" (51mm)

• Roll size: Up to 15" (381mm) diameter

Case Capacity:

Based on use of 2" wide CaseLocker ST® Cartridge

Minimum / Maximum

• Height: 4-1/2″ (114 mm) / Height: 24″ (610 mm)

• Width: 4-1/2″ (114 mm) / Width: 20″ (559 mm)

• Length: 6-1/2″ (165 mm) / Length: infinite

* Conveyor height minimum is 22-1/4" (565mm)

All Loveshaw machines and equipment are proudly made in the USA.

TECH SUPPORT - SERVICE - PARTS:

All technical support, service, and machine parts are fully supported by our dedicated technical parts division.     Come visit us!

FREIGHT & SHIPPING:

  AN ESTIMATED LTL FREIGHT & CRATING PRICE WILL BE PROVIDED BY REQUEST ON AN E-QUOTE

LOVESHAW - LEGEND - RANDOM - CASE SEALER - VIDEO

Video # 1
