Cousins - SWITCH - HP-SWDT - Stretch Wrapper - Highlight Video


* The video shown is for demonstration purposes to show the operation of a dual turntable machine. This specific model in the video is a HP-2100-SRT-DT- dual turntable unit.

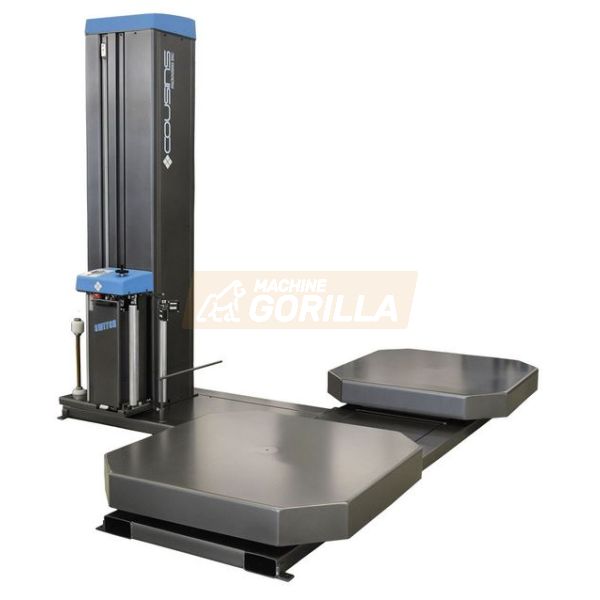

Cousins - Stretch Wrapper - Model - SWITCH - HP-SWDT

Quick Overview

Cousins - Stretch Wrapper - Model - SWITCH - HP-SWDT - Semi-Automatic - Heavy Duty - High Profile - Dual Turntable Stretch Wrap System.

The SWITCH stretch wrapper is the only machine available that can be easily converted to a labor-saving fully automatic machine on-site at a later date. This unit supports the Super Rapid Thread II™ 20” capacity pre-stretch film carriage as a standard feature. This machine is a game changer especially with dual turntables, affordable and simple to use with more standard features than any other pallet wrapper in this price range.

See below for specific specification details and information. Configure and build your own machine with options below.


As low as: $13,015.00

Price as configured: $12,890.00

Custom notifications:


"Add To Quote" for a personalized quote.

This machine will have a lead-time associated with it. One of our machine technicians will advise based on the specific model #.

Price as configured: $12,890.00

  • Details



    Cousins - Stretch Wrapper - Model - SWITCH - HP-SWDT - Semi-Automatic - Heavy Duty - High Profile - Dual Turntable Stretch Wrap System



    The Cousins SWITCH stretch wrapper is the only machine available that can be easily converted to a labor-saving fully automatic machine on-site at a later date. This unit supports the Super Rapid Thread II™ 20″ capacity pre-stretch film carriage as a standard feature. This machine is a game changer especially with dual turntables, affordable and simple to use with more standard features than any other pallet wrapper in this price range. This unit has all the simplicity and ease a medium to a larger user could want in a stretch wrapper, but all the needs to wrap numerous pallet loads throughout the day

    All PARTS are stocked and available for immediate shipment.  All technical support, service, and machine parts are fully supported by our dedicated technical parts division Machine Parts Toolbox.







    SPECIFICATIONS



    Production Speed

    • 1-40 loads per hour (Dual Turntable)

      • NOTE: Process rates will vary with load size, number of wraps & forklift load/unload time



    Load Capacity

    • Maximum load weight: 4,500 lbs dynamic - 10,000 lbs static

    • Maximum load size to safely clear the tower: 58" W x 58" L (82" max. load diagonal)

    • Maximum load size to remain inboard of the turntable: 48" W x 48" L (68" max. load diagonal)

    • Maximum load height: 80" H (plus up to 4" top overlap)



    Turntable

    • 48" octagonal 5/16″ thick formed steel plate turntable - (quantity - 2 for a dual turntable)

    • 4 point caster support system

    • Turntable height less than 11″ from floor

    • ANSI # 50 direct chain drive c/w chain tensioner

    • 3-12 RPM rotational speed c/w soft start acceleration

    • 1/2 HP AC variable speed motor - (quantity - 2 for a dual turntable)

    • Final revolution deceleration and positive stop alignment

    • Front and back forklift ports for easy movement

    • Accu-Count exact turntable positioning system for additional film savings!



    Film Carriage Elevator

    • 1/2 HP AC variable speed motor

    • ANSI #40 direct chain drive c/w shock dampener & Anti-Fall Safety Device

    • Maintenance free carriage guidance system



    Film Delivery System / Film Capacity

    • NEW Super Rapid Thread II ™ 20" capacity pre-stretch film carriage

    • Special Film Threading Device - Uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside of the load.

    • 1/2 HP AC variable speed motor

    • Fully electronic dynamic dancer corner compensation

    • 33% to 313% fixed stretch capability

    • Pre-stretch ratio variable using easy sprocket change

    • Carriage Descent Obstruction Safety Shut-Off Device

    • Rapid Thread ™ Safety Door with auto power cut-off switch

    • Side mounted film carriage for operator convenience and safety

    • Superior film-to-roller contact area

    • Lifetime warranty on pre-stretch rollers



    Electrical Input Requirements

    • 115 Volts 1 Phase 60 Hz 15 Amps





    FEATURES



    Control Features

    • Electronic controls with LCD operator interface

    • Power Off - On - Reset switch & Power On indicator light

    • Single button Auto Wrap Cycle Start/Pause

    • Cycle Pause for applying top sheets

    • Reinforce Wrap control for mid-wrapping

    • Base or Top Wraps First program

    • Up Only or Up/Down wrap program

    • Emergency Stop button

    • Turntable Jog button

    • Film Carriage Lower & Raise buttons

    • Film Tension (Force-to-Load) control

    • Separate film carriage raise & lower speed controls

    • Operator programmable turntable speed control

    • Triple beam automatic load height detection sensor for dark or shiny loads

    • Separate 1 to 12 revolution top & bottom wrap control

    • Selectable Reduced Film Tension parameters for wrapping top and/or bottom of load

    • A - B - C wrap program selector with capability to input and store unique wrapping parameters for each program



    Tower Design

    • Fully enclosed & Guarded Motors

    • No Exposed Cables

    • Heavy Duty Formed / Structural Steel

    • Electro-static powder coated paint finish

    • 5 Year Warranty on Steel Fabrications



    Structural Features

    • All structural steel construction

    • Forklift truck portable base structure design - lifting tubes included for front and rear access

    • Structural steel tube machine tower with sheet metal covers

    • Electro-static powder coated paint finish



    AVAILABLE OPTIONS

    As Shown Above

        • OAFS – Auto Film Start (Includes film holding clip & pendant start/stop station)

        • OBFD – Broken Film/Out of Film Detection c/w Automatic Machine Reset and Fault Indication

        • OCP2 – Cold Weather Package (down to 32ºF)

        • ODP1 – Dusty Package

        • OEB1 – 2 ft. Base Extension for Maximum 95″ Diagonal (Note: 71″ diagonal is standard)

        • OEWH-110-S – Tower Extension for 110″ Wrap Height Capability (Note: Standard is 80″. All machines with tower extensions will be hinged and shipped knocked-down)

        • OPABL – Beacon Light with Red & Green lens – (Indicates run, clear or fault conditions)

        • OPSCLP-SW250 – SCALE PACKAGE (PLATFORM) – SureWeigh Platform Scale with GSE250 Digital Weight Indicator (Notes:

        • OSCRMPP Scale Ramp option is required for pallet jacks. Machine with base extension option requires a factory quote)

        • ORMP-S – Ramp for manual pallet jack loading – 48″ W x 60″ L

        • OPE1-S – 24″ L x 48″ W Porch Extension for Powered Pallet Jacks

        • OPE2-S – 40″ L x 48″ W Porch Extension for Powered Pallet Jacks

        • OSCBI-250 – LOW PROFILE SCALE PACKAGE – Built-in Load Cells with GSE250 Digital Weight Indicator (Notes: SCBIRMP Scale Ramp option is required for pallet jacks. Machine with base extension option requires a factory quote)

        • OSCBIRMP – Heavy Duty Scale Ramp for use with built-in load cells

        • OSCRMPP – Complete 120″L x 48″W Heavy Duty Scale Ramp & Porch for use with platform scales

        • OSSPK – Starter Spare Parts Kit









    All Cousins machines and equipment are proudly fabricated and made in North America.









    TECH SUPPORT - SERVICE - PARTS:



    All technical support, service, and machine parts are fully supported by our dedicated technical parts division.     Come visit us!







    FREIGHT & SHIPPING:



      AN ESTIMATED LTL FREIGHT & CRATING PRICE WILL BE PROVIDED BY REQUEST ON AN E-QUOTE







    COUSINS - SWITCH-HP-SWDT - STRETCH WRAPPER - VIDEO

    Video # 1






    Custom notifications:

    This machine will have a lead-time associated with it. One of our machine technicians will advise based on the specific model # and options.

    " Add to Quote " for a personalized e-quote.

    Additional Information

    Short Description

    Cousins - Stretch Wrapper - Model - SWITCH - HP-SWDT - Semi-Automatic - Heavy Duty - High Profile - Dual Turntable Stretch Wrap System.

    The SWITCH stretch wrapper is the only machine available that can be easily converted to a labor-saving fully automatic machine on-site at a later date. This unit supports the Super Rapid Thread II™ 20” capacity pre-stretch film carriage as a standard feature. This machine is a game changer especially with dual turntables, affordable and simple to use with more standard features than any other pallet wrapper in this price range.

    See below for specific specification details and information. Configure and build your own machine with options below.

    SKU M-32946-G
    Custom note

    "Add To Quote" for a personalized quote.

    This machine will have a lead-time associated with it. One of our machine technicians will advise based on the specific model #.

    Additional Info

    This machine will have a lead-time associated with it. One of our machine technicians will advise based on the specific model # and selected options. This machine will ship direct from the manufacturer and will be PLUS FREIGHT. LTL Freight will depend on destination zip code.

    "Add To Quote" for a personalized quote.

    Manufacturer Cousins Packaging
    Manufacturer's SKU COU-SWITCH-HP-SWDT
    Manufacturer's Model Number SWITCH HP-SWDT
    Manufacturer Category Stretch Wrapping Machine
    Unit of Measure each
