Eagle - Side Belt - Carton Sealer - Model # T100SM. The Eagle T100SM is a popular Carton Sealer in the Eagle Line up!
Designed to seal very small cartons and is best suited for medium volume production. Used in all types of facilities, manufacturers, production plants, co-packing facilities, commercial printers and many more.
Side Belt Drive ensures proper carton sealing even with cartons that are short in height, but have an extended length.
See below for specific specification details and information.
Custom notifications:
" Add To Quote " for a personalized quote. This is a stock machine, but may have a lead-time associated with it due to order volumes. One of our machine technicians will advise based on the specific model # ordered.

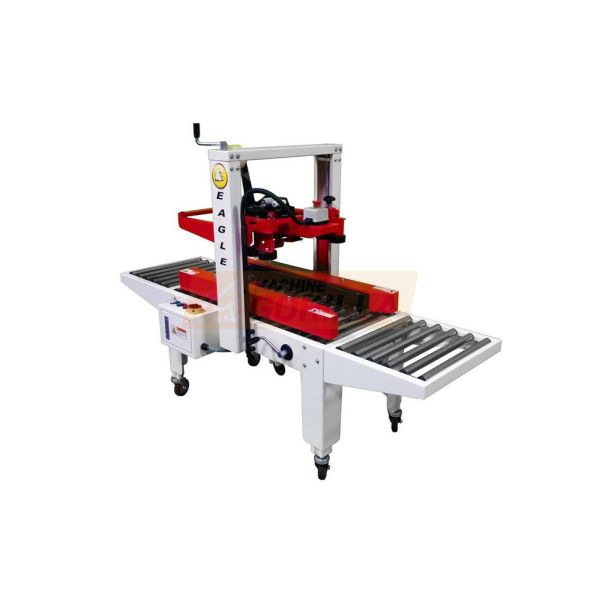

EAGLE - CARTON SEALER - SIDE BELT - MODEL # T100SM
The Eagle T100SM is a popular Carton Sealer in the Eagle Line up!
Designed to seal very small cartons and is best suited for medium volume production. Used in all types of facilities, manufacturers, production plants, co-packing facilities, commercial printer and many more.
Side Belt Drive ensures proper carton sealing even with cartons that are short in height, but have an extended length.
Tape Head can accept only 2” machine length tape.
The maintenance of the machine is extremely low as this machine was developed to run.
All PARTS are stocked and available for immediate shipment. All technical support, service, and machine parts are fully supported by our dedicated technical parts division Machine Parts Toolbox.
STANDARD FEATURES:
Side Drive Belts
Locking Casters
Top Squeezers
Dual Mast
Top & Bottom Tape Heads
Extension Roller Tables
SPECIFICATIONS:
Power Supply -- 110VAC / 60Hz, single phase
Carton Size -- Length ( 6" - infinity ), Width ( 3.75" - 11.75" ), Height ( 3.0" x 18.50" )
Work Speed -- 30 cartons / minute
Tape Material -- BOPP
Tape Size -- 2" machine length
Machine Dim -- 43" x 32" x 50.3"
Machine Weight -- 509 lbs
1 Year Warranty on Parts
AVAILABLE OPTIONS:
High-Speed Motors
Roller Conveyor
Extended Working Height
Indexer Hold Down Attachment
Low Tape Sensor
Broken Tape Sensor
All Eagle machines and equipment are proudly assembled and programmed in the USA.
TECH SUPPORT - SERVICE - PARTS:
All technical support, service, and machine parts are fully supported by our dedicated technical parts division. Come visit us!
FREIGHT & SHIPPING:
AN ESTIMATED LTL FREIGHT & CRATING PRICE WILL BE PROVIDED BY REQUEST ON AN E-QUOTE
Our TECHNICIANS ARE READY To HELP !
This is a stock machine, but may have a lead-time associated with it due to order volumes. One of our machine technicians will advise based on the specific model # ordered.
" Add To Quote " for a personalized quote.
Typically ships in 5-7 days based on stock levels.
Prices are subject to change based on factory.
SKU | M-32022-G |
---|---|
Short Description | Eagle - Side Belt - Carton Sealer - Model # T100SM. The Eagle T100SM is a popular Carton Sealer in the Eagle Line up! |
Custom note | " Add To Quote " for a personalized quote. |
Additional Info | This is a stock machine, but may have a lead-time associated with it due to order volumes. One of our machine technicians will advise based on the specific model # ordered. |
Manufacturer | Berran - Eagle |
Manufacturer's SKU | BE-T100SM |
Manufacturer's Model Number | T100SM |
Manufacturer Category | Carton Sealer - Tape Machine |
Unit of Measure | each |
