Eagle - R2B2 - Robot Stretch Wrapper - Highlight Video

Eagle - Stretch Wrapper - Model 2000F

Eagle - Stretch Wrapper - Model 2000F

Eagle - Stretch Wrapper - Model - R2B2

was $14,500.00 Special Price $12,800.00

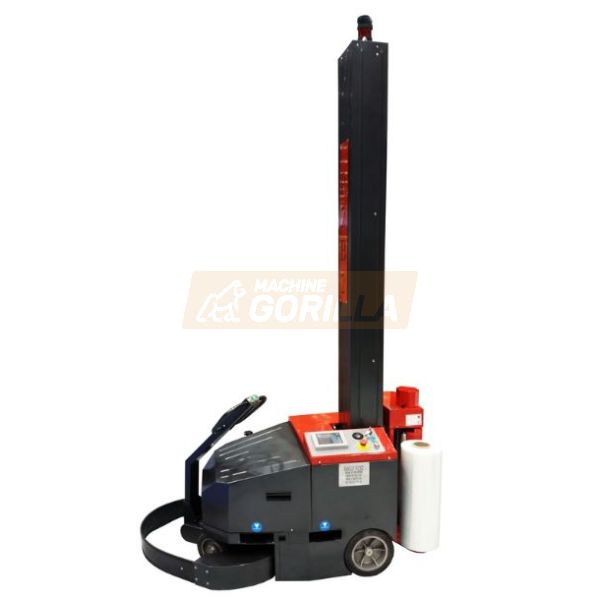

Eagle - Robot Stretch Wrapper - Model # - R2B2.  The Eagle R2B2 is one of the Newest ROBOT Stretch Wrappers in the Eagle Line up and the market!

The R2B2 Robot features a POWERED* pre-stretch unit to maximize film efficiency from 200% up to 300%.

Using an electronic photo-eye, the R2B2 automatically recognizes load size, height, and adjusts carriage travel to create an effective wrap cycle with consistent pre-stretch tensions on every load.

See below for specific specification details and information.

SKU
M-32073-G

Custom notifications:

" Add To Quote " for a personalized quote. This is a stock machine, but may have a lead-time associated with it due to order volumes. One of our machine technicians will advise based on the specific model # ordered. As of 08/01/18 - CURRENT LEAD-TIME - Approx 8 weeks due to high demand and orders in house.



EAGLE - ROBOT STRETCH WRAPPER - MODEL # R2B2



The Eagle R2B2 is one of the Newest ROBOT Stretch Wrappers in the Eagle Line up and the market!

The R2B2 Robot features a POWERED* pre-stretch unit to maximize film efficiency from 200% up to 300%.

Using an electronic photo-eye, the R2B2 automatically recognizes load size, height, and adjusts carriage travel to create an effective wrap cycle with consistent pre-stretch tensions on every load.

The robot offers a soft start and soft stop feature to ensure gentle handling of the load being wrapped.

The unit features provide for increased production and a cost per load savings that can easily justify owning an Eagle R2B2 robot stretch wrapper.  This machine shows up for work every day ready to wrap 175 to 275 pallets *

The maintenance of the machine is extremely low as this machine was developed to run.

All PARTS are stocked and available for immediate shipment.  All technical support, service, and machine parts are fully supported by our dedicated technical parts division Machine Parts Toolbox.

Special Note

This machine is only actually sold and delivered after an arranged demo on-site at the specific facility that will use the unit. These machines are very different from the standard turntable and overhead rotary machines and need to be qualified.

It is required that the customer do a demo test and approve in writing that the machine does, in fact, work for them as needed in their facility for their specific skid configurations. This way the machine has been qualified to work for the customer in their facility and all questions have been covered prior to purchase and delivery.

  * please note these requirements are done to protect you, as many customers do not understand these robot units and how they work.





STANDARD FEATURES:



Pro-Face Touch Screen HMI

Powered Prestretch (200- 300% capability)

PLC (Programmable Logic Controller)

LCD Display with Integrated Controls

ALHS (Automatic Load-Height Sensor)

Soft Start/Stop In Movement

Handles Pallet Load Profiles A, B, & C



* The R2B2 machine run times and pallets wrapped depend upon pallet sizes and correct charging levels *







SPECIFICATIONS:



Battery -- 24VDC / 120 Ah

Charging Source -- 220/110VAC /  50/60Hz , single phase

Run Time -- 12 175 to 275 Pallets *

Speed -- 3.35 - mph

Min. Pallet Size -- 2 ft x 2 ft - (width x legth)

Max. Pallet Size -- Infinite - (width x legth)

Min. Load Height -- 29" - Inches

Max. Load Height -- 92" - Inches

Stretch FIlm Size -- 20" - Inch *

Machine Dimesions -- " x " x " - Inches

Machine Weight -- 300 lbs

** 30" film carriage available by request

1 Year Warranty on Parts





AVAILABLE OPTIONS:



Possible custom options evaluated by request







ADDITIONAL HELPFUL CALCULATOR LINKS:



Jack Clearance Calculator

Diagonal Measurement Calculator







All Eagle machines and equipment are proudly assembled and programmed in the USA.









TECH SUPPORT - SERVICE - PARTS:



All technical support, service, and machine parts are fully supported by our dedicated technical parts division.     Come visit us!







FREIGHT & SHIPPING:



  AN ESTIMATED LTL FREIGHT & CRATING PRICE WILL BE PROVIDED BY REQUEST ON AN E-QUOTE







 Think Big   Our TECHNICIANS ARE READY To HELP ! Call Now    New Product





Custom notifications:

As of 08/01/18 - CURRENT LEAD-TIME - Approx 8 weeks due to high demand and orders in house.

Stock machine ships in 5-7 days, but may have a longer lead-time associated with it due to order volumes. One of our machine technicians will advise based on the specific model # ordered.

" Add To Quote " for a personalized quote.

More Information
SKU M-32073-G
Short Description

Eagle - Robot Stretch Wrapper - Model # - R2B2.  The Eagle R2B2 is one of the Newest ROBOT Stretch Wrappers in the Eagle Line up and the market!

The R2B2 Robot features a POWERED* pre-stretch unit to maximize film efficiency from 200% up to 300%.

Using an electronic photo-eye, the R2B2 automatically recognizes load size, height, and adjusts carriage travel to create an effective wrap cycle with consistent pre-stretch tensions on every load.

See below for specific specification details and information.

Custom note

" Add To Quote " for a personalized quote.

This is a stock machine, but may have a lead-time associated with it due to order volumes. One of our machine technicians will advise based on the specific model # ordered.

Additional Info

As of 08/01/18 - CURRENT LEAD-TIME - Approx 8 weeks due to high demand and orders in house.

This machine is only actually sold and delivered after an arranged demo on-site at the specific facility that will use the unit. These machines are very different from the standard turntable and overhead rotary machines.

It is required that the customer test and approve in writing that the machine does, in fact, work for them as needed in their facility and specific skid configurations. This way they know it works for them in their facility and all questions have been covered prior to purchase and delivery.

  • please note these requirements are done to protect you, as many customers do not understand these robot units and how they work.


This is typically a stock machine, but may have a lead-time associated with it due to order volumes. One of our machine technicians will advise based on the specific model # ordered.

" Add To Quote " for a personalized quote.

This machine ships direct from the manufacturer and will be PLUS FREIGHT. Freight will be quoted and depend on delivery zip code


Manufacturer Berran - Eagle
Manufacturer's SKU BE-R2B2
Manufacturer's Model Number R2B2
Manufacturer Category Stretch Wrapping Machine
Unit of Measure each
