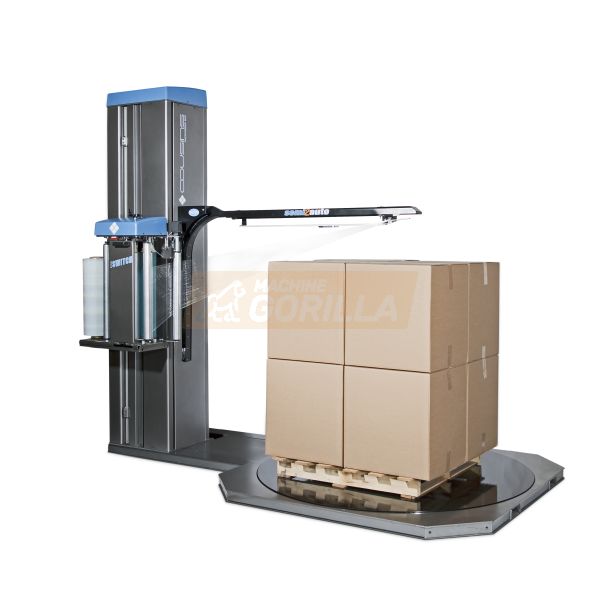

Cousins - "The Switch" Model - LP-SWA - A-ARM - Heavy Duty Low Profile Turntable Platform Automatic Stretch Wrap System
SKU
test-product

Custom notifications:

This machine may have a lead-time associated with it. One of our machine technicians will advise based on the specific model # and selected options.
Customize Test Product C2Q

* Required Fields

Your Customization
Cousins - "The Switch" - Automatic Stretch Wrapper - Model - LP-SWA - A-ARM
Test Product C2Q

Out of stock

$0.00

Summary

    Cousins - "The Switch" Model - LP-SWA - A-ARM - Heavy Duty Turntable Platform Automatic Stretch Wrap System - Low Profile



    The Cousins A-Arm Fully Automatic Stretch Wrapper is there hiden gem. This machine was made with the Semi-automatic user in mind.  In most cases a semi automatic stretch wrap user could never justify moving to a fully automatic machine.  It is now possible with the Cousins A-Arm machine.  The cost of a fully automatic machine for less than any competitors in the market place.



    SPECIFICATIONS:

    Production Speeds:

    • 1-40 loads per hour    Note: Process rates will vary with load size, number of wraps & forklift load/unload time



    Load Capacity:

    • Maximum load weight: 4,500 lbs dynamic - 10,000 lbs static
    • Maximum load size to safely clear the tower: 67" W x 67" L (96" load diagonal)
    • Maximum load size to remain inboard of the turntable: 46" W x 46" L (65" load diagonal)
    • Maximum load height: 80" H (plus up to 4" top overlap)



    Turntable:

    • 65" Diameter laser-cut steel plate with surround deck protection
    • Maintenance free - 48 roller bearing support system
    • Turntable height 2.75" from floor
    • ANSI # 50 direct chain drive c/w chain tensioner
    • 3-12 RPM rotational speed c/w soft start acceleration
    • 1/2 HP AC variable speed motor
    • Final revolution deceleration and positive stop alignment
    • Rugged surround deck for added protection, 3 sided loading and pit mounting
    • Front & back forklift ports for easy movement
    • Accu-Count exact turntable positioning system for additional film savings!
    • Optional loading ramp 60" long x 48" wide complete with 10" level porch area available



    Film Carriage Elevator:

    • 1/2 HP AC variable speed motor
    • ANSI #40 direct chain drive c/w shock dampener & Anti-Fall Safety Device
    • Maintenance free carriage guidance system



    Film Delivery System:

    • NEW Super Rapid Thread II ™ 20" capacity pre-stretch film carriage
    • Special Film Threading Device - Uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside of the load
    • 1/2 HP AC variable speed motor
    • Fully electronic dynamic dancer corner compensation
    • 33% to 313% fixed stretch capability
    • Pre-stretch ratio variable using easy sprocket change
    • Carriage Descent Obstruction Safety Shut-Off Device
    • Rapid Thread ™ Safety Door with auto power cut-off switch
    • Side mounted film carriage for operator convenience and safety
    • Superior film-to-roller contact area
    • Lifetime warranty on pre-stretch rollers



    Electrical Input Requirements:

    • 115 Volts 1 Phase 60 hz 15 Amps



    FEATURES:

    Automation Features:

    • "All Electric - No Pneumatics Required"
    • "Patent Pending" Cousins exclusive patent pending A-Arm film cut and hold device starts and ends the wrap process at the top of the load. This uniquely different approach to attaching and cutting the stretch film provides you with these benefits:
    • Selectable top banding capability
    • Stabilizes the load early in the wrap cycle
    • Places the ending film tail at the top of the load instead of the bottom
    • There is no film clamp on the turntable that can be damaged by debris or operator error - also eliminates the need for slip-rings to supply power onto the turntable for less maintenance
    • Load placement on the turntable is not critical
    • No air hook-ups or noisy compressors
    • Automatic First Revolution Load Scanning Safety Feature detects uneven or partial stacked top layers and automatically adjusts A-Arm height clear of obstructions
    • A-Arm Anti-Fall Safety Device



           Control Features:

    • Electronic controls with LCD operator interface
    • Power Off - On - Reset switch & Power On indicator light
    • Single button Auto Wrap Cycle Start/Pause
    • Cycle Pause for applying top sheets
    • Reinforce Wrap control for mid-wrapping
    • Emergency Stop button
    • Turntable Jog button
    • Film Carriage Lower & Raise buttons
    • Film tension (Force-to-Load) control
    • Separate film carriage raise & lower speed controls
    • Operator programmable turntable speed control
    • Triple beam auto load height sensing photo-eye, detects dark or shiny loads
    • Separate 1 to 12 revolution top & bottom wrap control
    • Selectable Reduced Film Tension parameters for wrapping top and/or bottom of load
    • A - B - C Wrap Program selector with capability to input and store unique wrapping parameters for each program
    • Wireless remote start/stop control - optional lanyard, pendant or pedestal control station available
    • 3 wrap modes: automatic spiral wrapping / automatic top banding / semi-automatic
    • 3 machines in one!

           Structural Features:

    • All structural steel construction
    • Forklift truck portable base structure design - lifting tubes included for front and rear access
    • Structural steel tube machine tower with sheet metal covers
    • Electro-static powder coated paint finish

    All Cousins Packaging machines are fabricated and proudly made in North America...



    Custom notifications:

    This machine may have a lead-time associated with it. One of our machine technicians will advise based on the specific model # and selected options.

    Prices are subject to change based on factory.

    More Information
    SKU test-product
    Short Description Cousins - "The Switch" Model - LP-SWA - A-ARM - Heavy Duty Low Profile Turntable Platform Automatic Stretch Wrap System
    Custom note This machine may have a lead-time associated with it. One of our machine technicians will advise based on the specific model # and selected options.
    Additional Info This machine will have a lead-time which will be determined by any and all options added to the base model. Once all options have been confirmed an estimated delivery date will be provided.
    Manufacturer Cousins Packaging
    Manufacturer's SKU COU-LP-SWA-A-ARM
    Manufacturer's Model Number LP-SWA-A-ARM
    Manufacturer Category Stretch Wrap Machine
